Analogue output modules for a 0-5V to -10V – +10V signal converter

Series

By Dr. Murat Uzam, Academic and Technical Author, Turkey

This series of columns is dedicated to a project involving thirteen analogue input modules and seven analogue output modules for a 5V microcontroller, connecting them to its ADC and DAC channels.

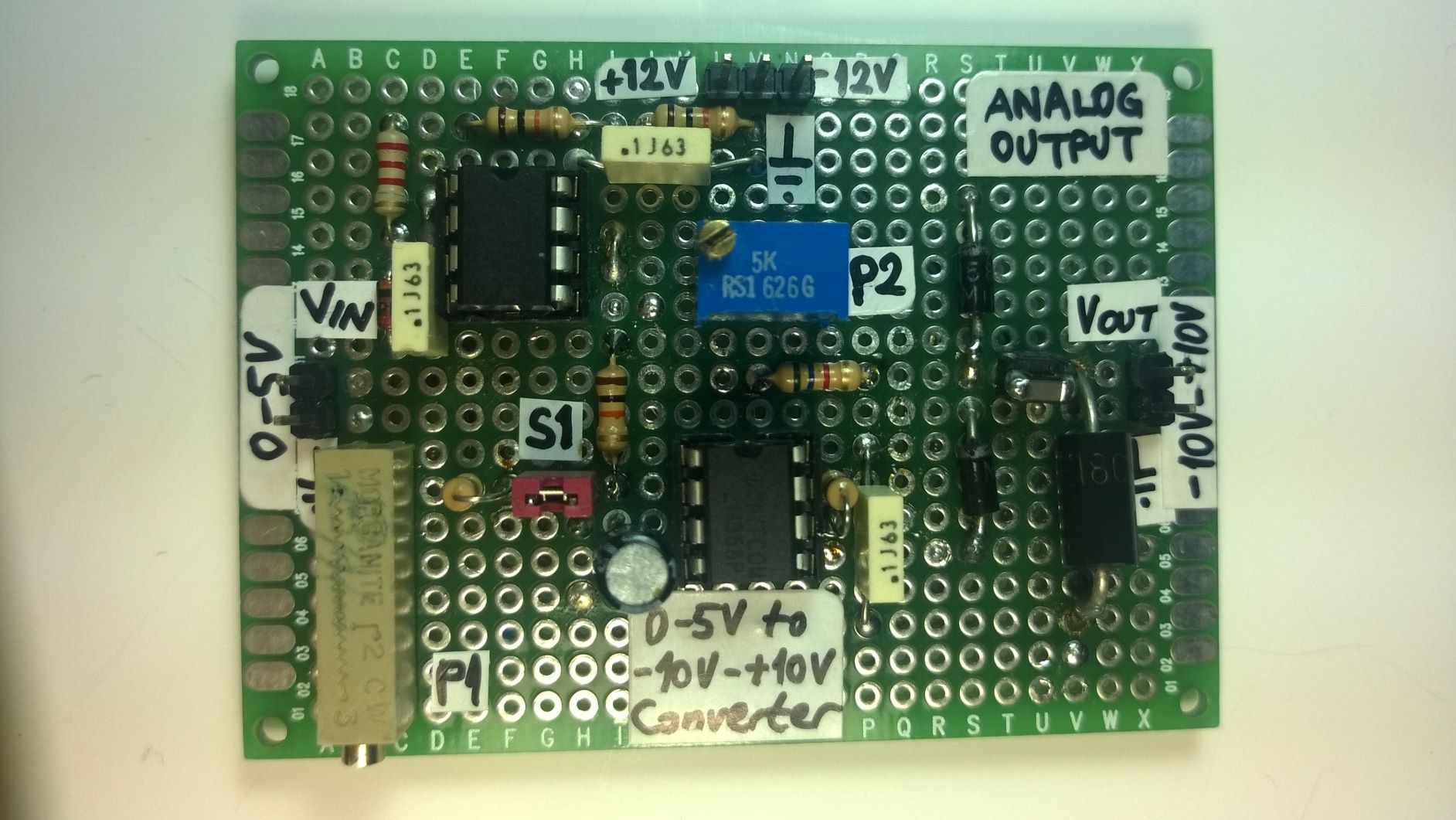

This month we will cover the fifth and sixth analogue output modules, i.e. the 0-5V to 10V – +10V signal converter’s analogue output modules 1 and 2. Module 1, and then module 2 respectively provide voltages from 10V to +10V, requiring three DC power supplies (+5V, 12V, +12V) for module 1, and two (12V, +12V) for module 2.
