Omron MOSFET Relay Minimises Leakage for Maximum Test Accuracy


In a world first for semiconductor and other test equipment, Omron Electronic Components Europe has created a MOSFET relay module that minimises leakage current.

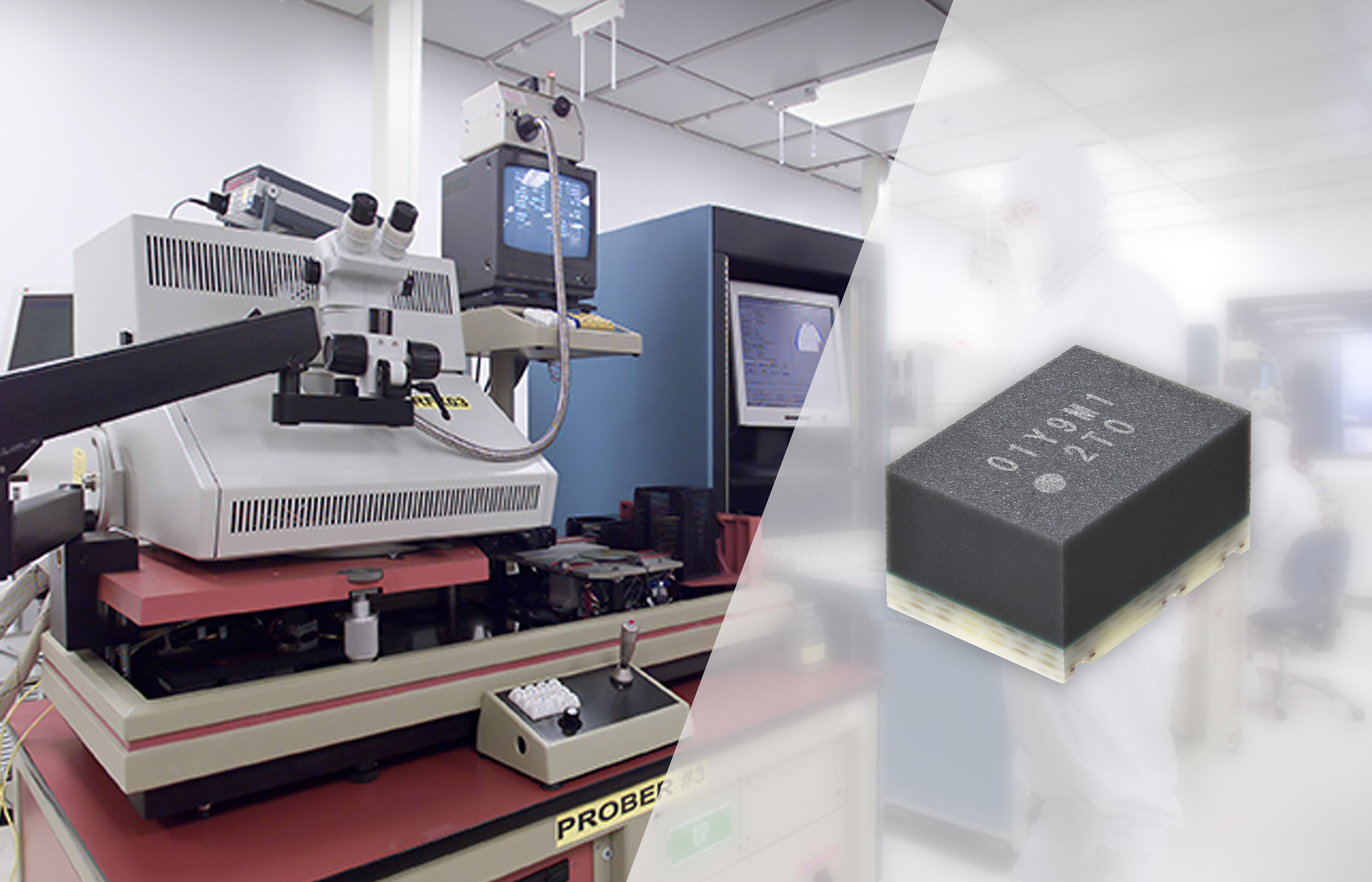

With a unique T- circuit structure, the Omron G3VM-21MT offers an exceptionally low leakage current of just 1pA or less, giving accurate measurements in all types of test equipment. Mechanical relays have previously been preferred in the semiconductor and other test equipment, in part due to their low leakage current. However, mechanical relays have a much lower lifespan due to abrasion of contacts which reduces measurement accuracy over time. In intensive use, frequent replacement may be necessary pushing up the maintenance costs.

With a ‘T-Type Circuit structure’ that sends most leakage current to ground, the G3VM-21MT effectively combines the advantages of the mechanical and MOSFET relays to provide an accurate, compact and long-lasting switching solution with no mechanical contacts. The compact size of 5mm x 3.75 mm x 2.7mm is achieved by the incorporation of the T-circuit into the module. The device is surface mounted and offered in SPST with no configuration required. It features a maximum load voltage of 20V and its isolation performance is less than -30dB at 1GHz.

Omron is planning further T-circuit MOSFET relay modules, including a high current and high voltage model.
