3000W configurable AC/DC power supply offering intelligent digital power with 24 isolated outputs

Products

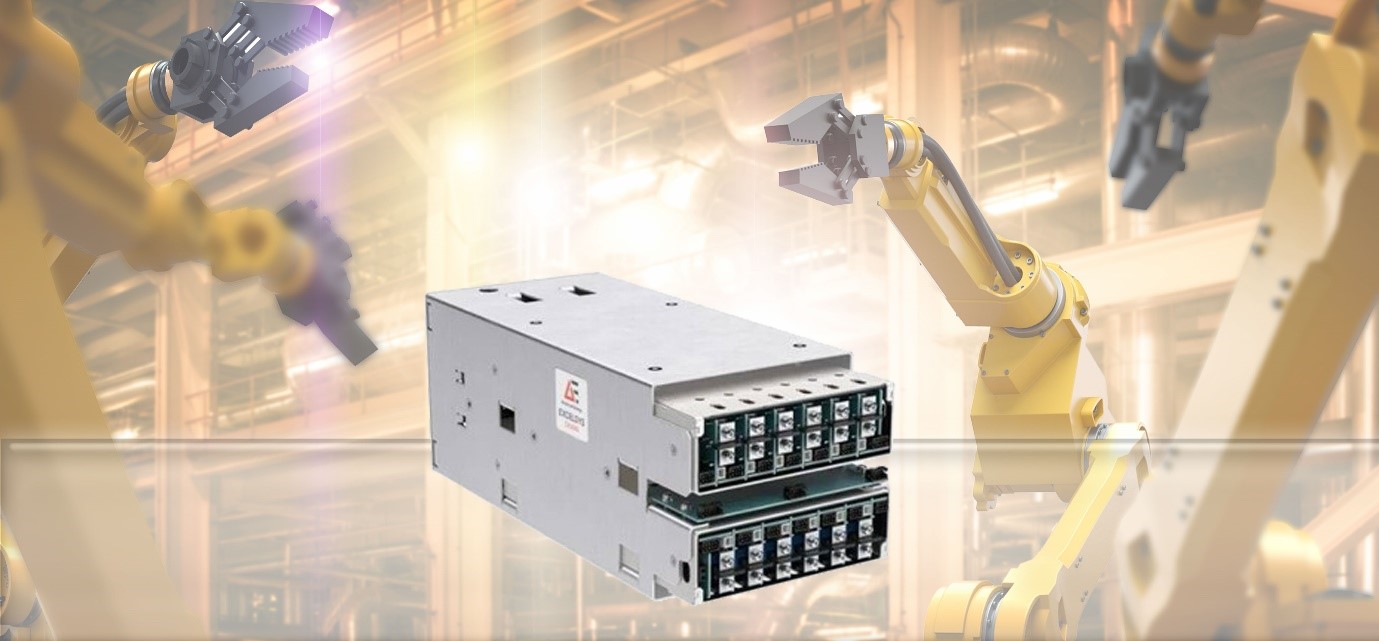

Components Bureau part of the Fortec Group based in Cambridgeshire are pleased to offer Advanced Energy’s Excelsys CoolX 3000 series. The new small sized configurable power supply offers an incredible 3000W in a small package of 300 x 131 x 120mm, addressing the requirement for smaller power supplies offering the same power but in a smaller footprint.

The CoolX 3000 series offers an impressive 24 outputs; all outputs are isolated (1850 VAC) and the power supply has PMBus digital communications for monitoring and control capability.  Features include plug and play power along with series and parallel outputs for higher voltage and currents.

The new 3000 series offer up to 91% efficiency with variable fan speed control.  It has level 4 input surge protection with a MTBF of 150,000 hours and comes with 5-year warranty. With an Input voltage range of 180 to 264 VAC (300VAC for 5secs), output voltage of 1 to 696V and ripple and noise 1% of nominal.

Operating temperature range  -25 to +60°C with an interface of 8-way connector, voltage control via potentiometer.

This intelligent modular power supply is suitable for Medical, Industrial and Harsh Industrial applications.

For more information on the CoolX3000 click here

For more information contact Components Bureau
