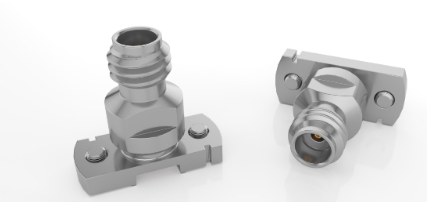

Samtec has released a 1.0mm vertical compression mount board connector for next-generation millimeter-wave test and measurement applications.
The 100-CM Series covers DC to 120GHz, ideal for applications for W-band and into D-band. This wide performance margin delivers greater reliability, precision, and repeatability through upper-limit frequencies without having to transition to complex waveguides or more expensive 0.8mm equipment.
The solderless compression mount design enables field-replaceable functionality and layout flexibility by allowing the connector to be used in a range of PCB locations. Unlike soldered board interfaces, compression mount technology helps simplify installation, replacement, and evaluation while supporting repeatable millimeter wave performance.
Another key differentiator of Samtec’s 100-CM Series compression-mount interconnect is its alignment features. Alignment grooves milled into the connector foot, paired with fiducials on the PCB, ensure the alignment pin is centered on the landing pad. This precise positional accuracy facilitates peak connector performance and optimal signal integrity. Performance is specified at a VSWR of 1.25:1 from DC to 40 GHz, 1.4:1 from 40 GHz to 110 GHz, and 1.6:1 from 110 GHz to 120 GHz, including microstrip PCB launch.
