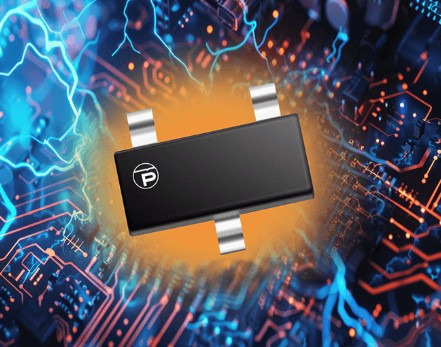

Inelco Hunter, distributor for ProTek Devices, has announced the PSM712 circuit protection device. The PSM712 is an asymmetrical TVS array designed specifically for RS-485 applications. The TVS array provides circuit protection against ESD, tertiary lightning and electrical switching transients.
It is compatible with IEC standards 61000-4-2 (ESD): air 15kV, contact 8kV; with 61000-4-4 (EFT): 40A, 5/50ns; and with 61000-4-5 (surge): 24A, 8/20 microseconds – level 2 (line-ground) & level 3 (line-line). The PSM712 is provided in a moulded JEDEC SOT-23 package with an approximate weight of just eight milligrams. The PSM712 has a peak pulse power of 600 Watts for an 8/20 microseconds waveshape.
The PSM712 is RoHS and REACH Compliant and is AEC-Q101 Qualified compatible with IEC 61000-4-2 (ESD): ±8kV Contact, ±15kV Air. It is also compatible with IEC61000-4-4 (EFT): 40A, 5/50ns and IEC 61000-4-5 (Surge): 1.5A, 8/20μs. It features 80 Watts Peak Pulse Power per Line(tp = 8/20μs). It has a low clamping voltage, low leakage current and low capacitance. The maximum Clamping Voltage is 19V. The Stand-off voltage is 12V max. with a minimum breakdown voltage of 13.3V.
The approximate weight is 8 milligrams. It is lead-free Pure-Tin Plating (Annealed). The Solder Reflow Temperature is: Pure-Tin – Sn, 100: 260-270°C. The Flammability Rating is UL 94V-0. The devices are supplied on an 8mm Tape and Reel meeting EIA Standard 481. The operating temperature is 55°C to 150°.
The potential applications are vast, and will include RS-485 Transceivers. Network Interfaces, Wireless Systems and Portable Electronics – in fact any RS-485 electronic application where there is a risk of electrostatic discharge, tertiary lightning or electrical switching transients.
Inelco Hunter’s engineering support team provides comprehensive technical backup for every product in their extensive range, including Protek Devices’ products. Inelco Hunter can also help customers with the design of their application, assisting with defined project requirements, including as-yet unformed product ideas, turning a concept into an outstanding product. This added-value support is at the core of Inelco Hunter’s philosophy, and has been for over 30 years, setting them apart from the “stock and ship” distributors.
