A low-power, low-cost, differential input to a single-ended-output amplifier


By Chau Tran and Jordyn Rombola, Product Engineers, Analog Devices


How to make a low-cost, low-power, differential input into a single-ended-output amplifier?


In many applications, there are requirements of low-power, high-performance differential amplifiers to convert small differential signals to readable ground-referenced output signals. Input voltages at two inputs usually share a large common-mode voltage. The differential amplifier rejects the common-mode voltage, and the remaining voltage is amplified and presented on the amplifier output as single-ended. The rejected voltage can either be AC or DC, and this common-mode voltage is typically larger than the differential input voltage.

The effectiveness of the rejection diminishes as the frequency of the common-mode voltage increases. Amplifiers within the same package have better matching, the same parasitic capacitance and need no external wiring. Therefore, a high-performance, high-bandwidth dual amplifier performs better with frequency than discrete amplifiers.

Simple Solution:

A simple solution is to use dual precision amplifiers with a resistive gain network, as shown in Figure 1. This circuit shows a simple way of converting a differential input to a single-ended output with adjustable gain. The gain of the system can be set by Equation 1:

where gain = RF/1kΩ and (VIN1 – VIN2) is the differential input voltage.
Figure 1: Differential input, single-ended-output amplifier

Generally, this technique provides a more stable reading when EMI or RFI is present and, therefore, it is recommended when noise is a problem. This is especially true when measuring thermocouple, strain gage and bridge-type pressure sensor inputs, since they produce very small signals in a noisy environment.

This circuit can offer a performance improvement over single-ended inputs by not only measuring the difference in voltage between the positive and negative terminals of the sensor, but also providing common-mode rejection with some system gain. Furthermore, the sensor ground can be different from the analogue ground. An output voltage referenced to ground is important in many applications; the accuracy of the system depends on the tolerance of the network resistors.

The circuit can convert a differential input to a single-ended output with adjustable gain. The gain of the system can be set by the ratio of RF and RG1 with the assumption that RG2 = RG1 and amplifier B has a gain of –1.

Example Amplifier

The ADA4807-2 is a 180MHz dual amplifier that can be built as inverting amplifier for this application, providing lower noise. With a low quiescent current of 1000μA per amplifier, the circuit is ideal for low-power, high-resolution data-conversion systems.

The input common mode can go beyond supply voltages. The output is rail-to-rail, which makes it useful in the presence of a large common-mode signal or large output voltage application. For example, the data acquisition board has an ADC that accepts a single-ended input of 0-5V. However, the signal source happens to be differential voltage, generated from a sensor bridge where one terminal swings positive while the other negative in response to the presence of common noise.

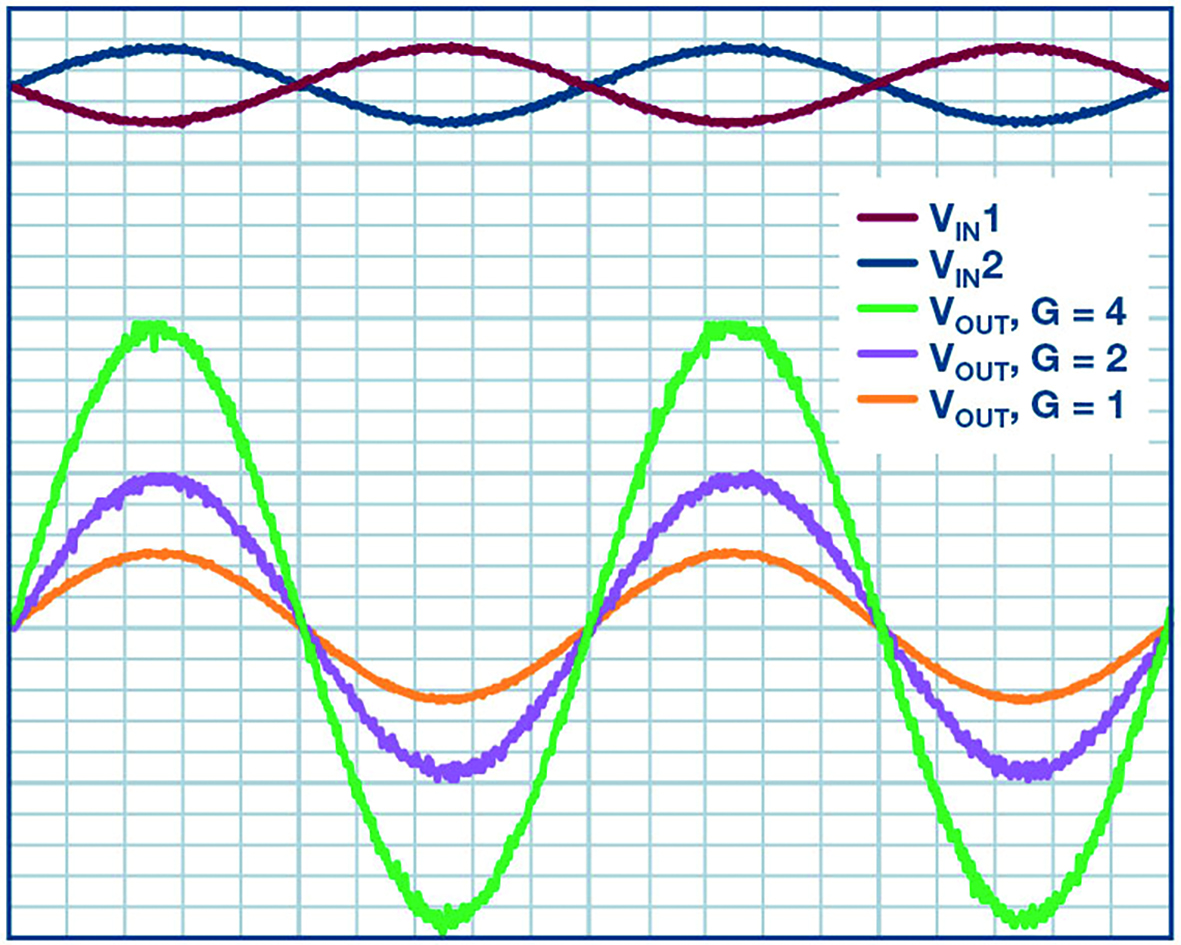

Figure 2: The performance of a simple differential to single-ended amplifier

The plot in Figure 2 was taken by applying a differential input voltage and varying the circuit’s gain. The RF value sets the gain of the system. The plot shows the system gain of 1, 2 and 4, with the differential input voltage of 1Vp-p at 1kHz.

The circuit is useful for measuring a small difference between two large voltages. For example, consider a solution with a simple 1% accuracy of monitoring a typical Wheatstone bridge circuit excited by 3V/GND in a 3V battery-powered system. Using 1% resistors or better will allow for high accuracy, and the circuit will reject any common mode and amplify the attenuated bridge signal by the gain it is set for. If driving an ADC, some level-shifting will need to be applied to get the output signal in the range of 0-5V.

This circuit offers a combination of excellent distortion with low quiescent current. The two op-amp solution results in lower system cost and better performance when using a differential amplifier.
